Henan Hongyu Enterprise Group has specialized in the manufacturing of special-purpose vehicles for over 30 years. Its independently developed HY series of blasting materials transport vehicles** have passed the Chinese GB21668-2008 standard and the EU ADR certification. They are suitable for the safe transportation of explosives in mining, infrastructure, and military industries, and have been exported to more than 20 countries in Southeast Asia, Africa, and South America.
Henan Hongyu Enterprise Group has specialized in the manufacturing of special-purpose vehicles for over 30 years. Its independently developed HY series of blasting materials transport vehicles** have passed the Chinese GB21668-2008 standard and the EU ADR certification. They are suitable for the safe transportation of explosives in mining, infrastructure, and military industries, and have been exported to more than 20 countries in Southeast Asia, Africa, and South America.
|
Vehicle Model |
HYZ5181XQYBJ |
|
Gross Mass （kg) |
18000,17550 |
|
External Dimensions(mm) |
10020,9120.8420x2530x3800,3500,3250 |
|
Cargo Box Dimensions(mm) |
7700.6800.6100x2430x2500,2200,1950 |
|
Curb Weight(kg) |
7810,7805,7360.7355 |
|
Load Capacity(kg) |
9995,10000 |
|
Chassis Model |
Foton BJ1186VKPHK-1K |
|
Engine Model |
B6.2NS6B210 |
|
Power(kw) |
154 |
|
Emission Standards |
Euro 6(5/4/3) |
**Triple Protection System**
Structural safety: Double-layer steel plates + explosion-proof lining (high polymer material), with an impact resistance of up to 1,500 kJ
Intelligent monitoring: Vehicle-mounted GPS + temperature and humidity sensors + vibration alarm, transmitting data to the regulatory platform in real time
Fire and static electricity prevention: Anti-static rubber floor, explosion-proof and flame-retardant wiring, electrostatic dissipation < 10Ω
Compliant Design
—Comply with the United Nations Recommendations on the Transport of Dangerous Goods and local regulations (customizable to meet U.S. DOT/European EN standards)

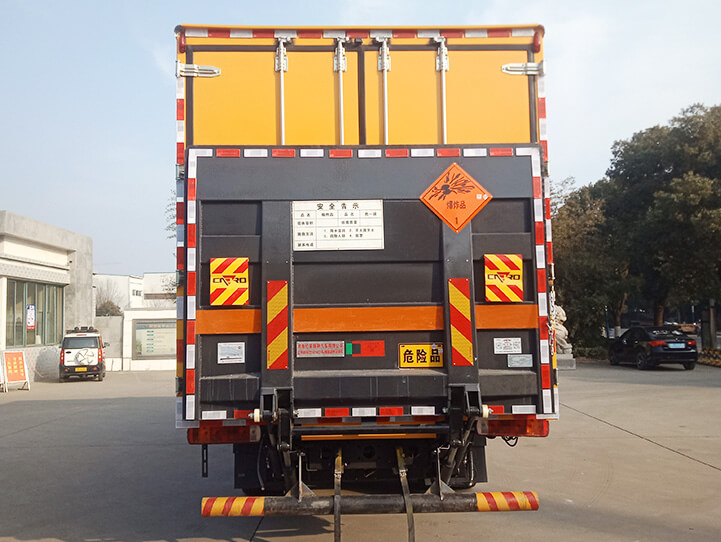

—Prominent explosive markings (orange reflective tape + UN number identification)
**User-friendly Operation**

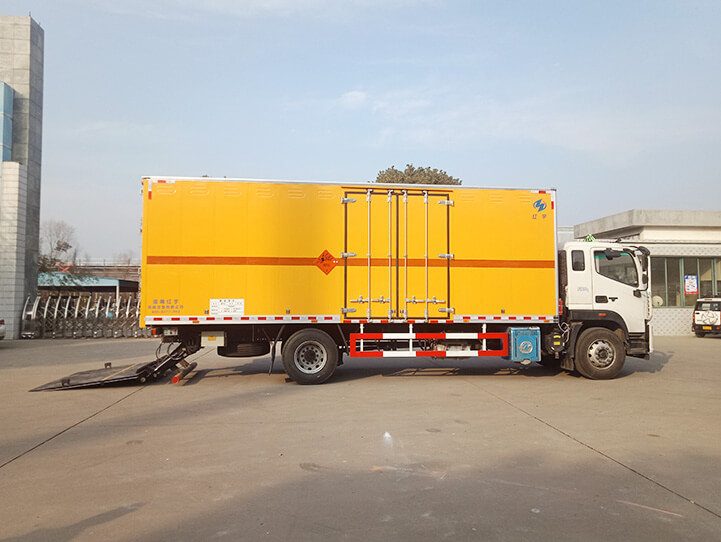

—Hydraulic tail gate + lifting platform (optional), improving loading and unloading efficiency by 40%
—Independent compartment design, supporting the separate loading of explosives and detonators in the same vehicle (certified by a 5-ton collision test)
**Local adaptation**: Offer regional custom solutions such as right-hand drive vehicles and desert high-temperature cooling systems.
**After-sales network**: 48-hour emergency response, with over 50 global contracted service providers offering spare parts.
**Flexible delivery**: Support complete vehicle export or CKD component assembly (assisting with local certification).
Delivery of blasting materials for mining
Transportation of military ammunition for national defense
Large-scale infrastructure projects (tunnels/bridges)
